  • 554872 - Headlamp bowl 3 adjuster seating rim and retaining rim

    Headlamp bowl 3 adjuster seating rim and retaining rim
    Headlamp bowl 3 adjuster seating rim and retaining rim
    Price From £15.60 / Each (£18.72 inc. VAT) Details & Ordering

  • 357B - 7" Headlamp bowl - 2 Adjuster type for Lucas pattern 700 series lights

    7
    Metal headlamp bowl for standard 7" Lucas 700 series type light units. Two adjuster type. Supplied with metal back shell, chrome retaining rim holder and adjusters. Includes nest to body gasket.
    Price From £40.20 / Each (£48.24 inc. VAT) Details & Ordering

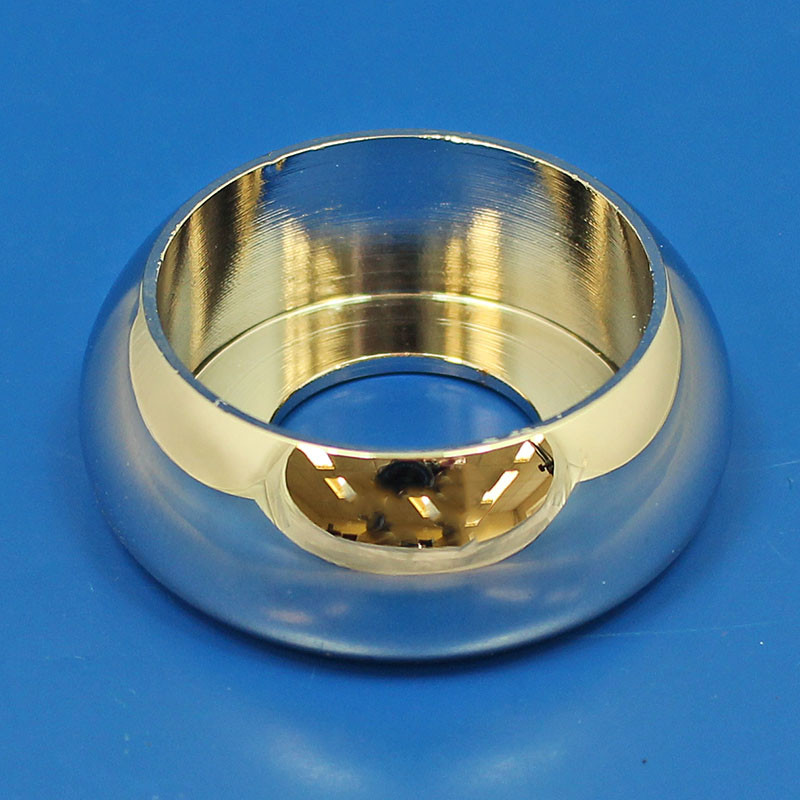

  • STEMBOLTCUPC - Headlamp stem bolt cup - Chrome

    Headlamp stem bolt cup - Chrome
    High quality stem bolt cup for headlamp mounting. Companion part to STEMBOLTKIT but compatible with many other headlamp stem bolts. Chrome finish of machined part. Good weight and finish. 38mm max outer diameter, 28mm main inner cup diameter, 15.4mm inner bolt hole diameter. 14mm overall depth, 12mm recess depth.
    Price From £9.34 / Each (£11.21 inc. VAT) Details & Ordering

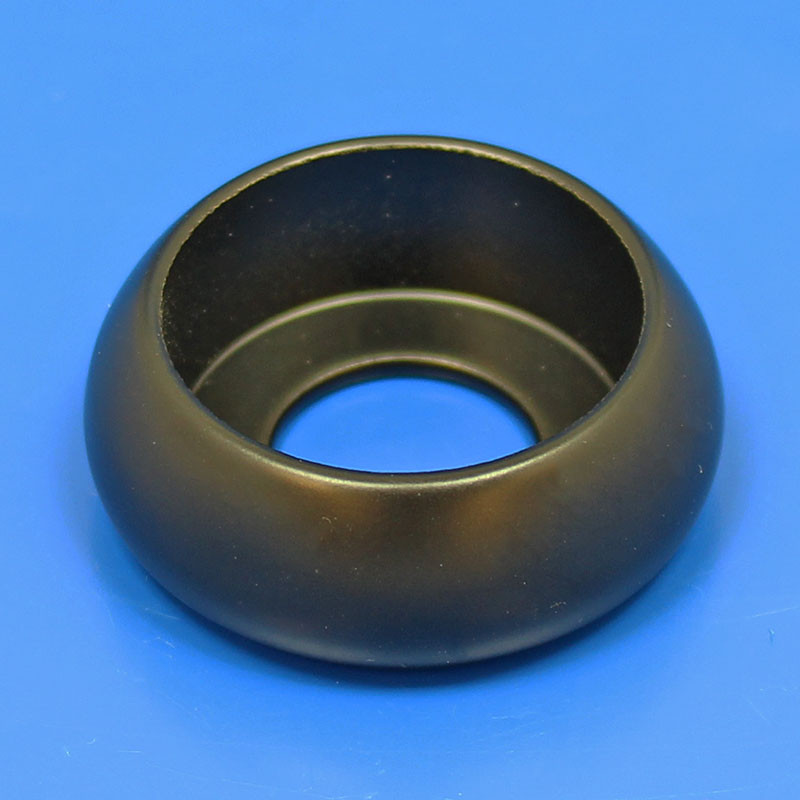

  • STEMBOLTCUPB - Headlamp stem bolt cup - Black

    Headlamp stem bolt cup - Black
    High quality stem bolt cup for headlamp mounting. Companion part to STEMBOLT kit but ompatible with many other headlamp stem bolts. Black half gloss powder coated finish of machined part. Good weight and finish. 38mm max outer diameter, 28mm main inner cup diameter, 15.4mm inner bolt hole diameter. 14mm overall depth, 12mm recess depth.
    Price From £9.34 / Each (£11.21 inc. VAT) Details & Ordering

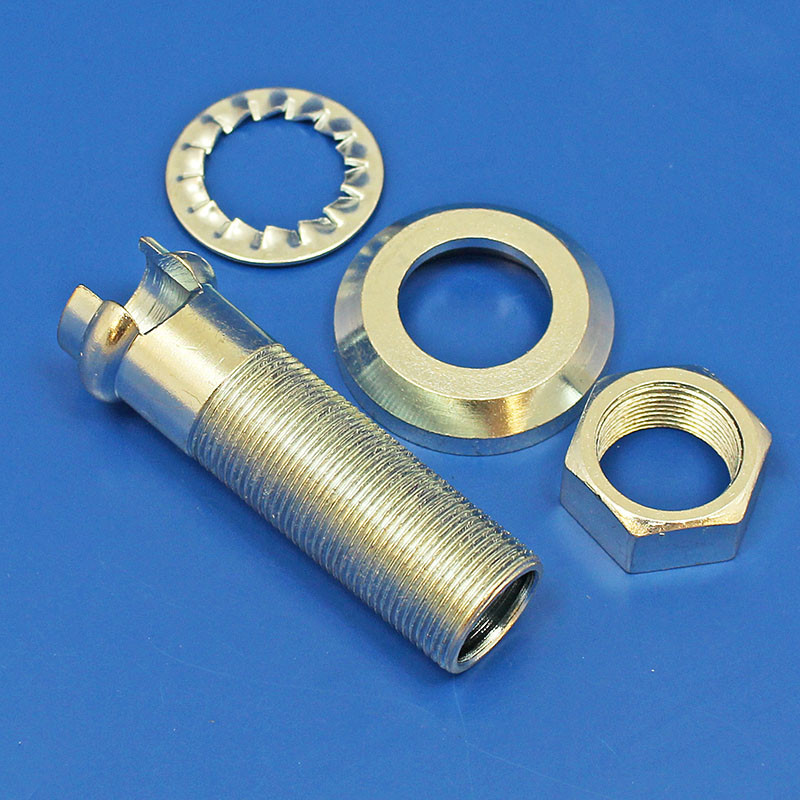

  • STEMBOLTKIT - Headlamp stem bolt - Complete with washers and nut

    Headlamp stem bolt - Complete with washers and nut
    Stem bolt, shakeproof washer and nut used in free standing headlights such as our 5 3/4" 1267 and and 7" AS700 part number series lamps. Excudes cup mount - please see part numbers STEMBOLTCUPB and STEMBOLTCUPC for black and chrome options.
    Price From £14.33 / Each (£17.2 inc. VAT) Details & Ordering

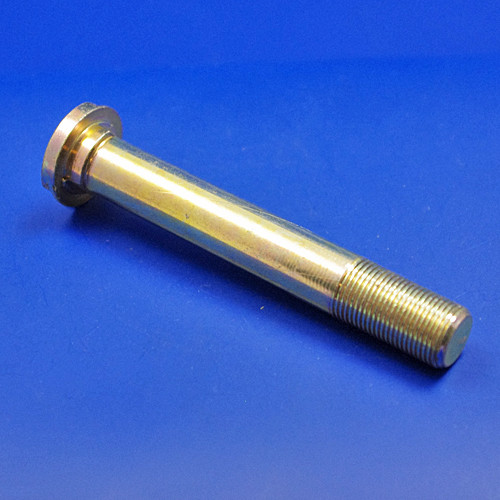

  • 629E - Headlamp stud - 1/2" x 26 tpi thread, for P80 and RB160 type lamps

    Headlamp stud - 1/2
    Headlamp mounting bolt for P80 and RB160 type lamps. Thread 1/2" x 26 tpi (fine thread) as original item. Measures approx 85mm long x 13mm thread diameter (thread runs for 24mm).
    Price From £26.14 / each (£31.37 inc. VAT) Details & Ordering

  • 632B - Headlamp stem nut - 1/2" x 26 tpi thread, for P80, P100 & RB160

    Headlamp stem nut - 1/2
    Brass headlamp stud mounting nut for Lucas RB160, P100, P80 etc. type lamps. Thread 1/2" x 26 tpi. Equivalent to Lucas part number 500357
    Price From £8.08 / each (£9.7 inc. VAT) Details & Ordering

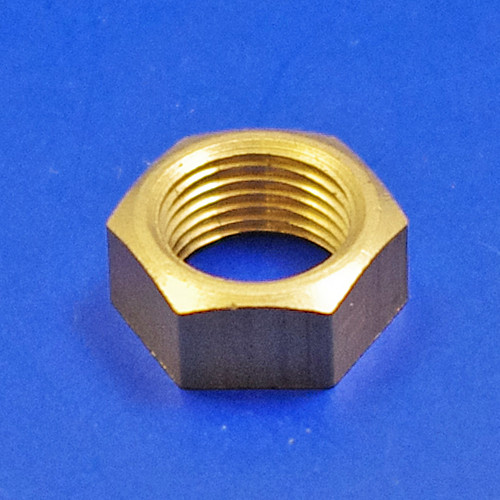

  • 632A - Spot and sidelamp stem nut - 7/16" x 26 tpi thread

    Spot and sidelamp stem nut - 7/16
    Hexagonal nut for many Lucas type sidelamps. 7/16" x 26 tpi (very fine thread) approx 11mm bore.
    Price From £4.93 / each (£5.92 inc. VAT) Details & Ordering

  • 632 - Headlamp stem nut - 5/8" x 26 tpi thread

    Headlamp stem nut - 5/8
    Hexagonal brass nut for headlamp, 5/8" x 26 tpi (fine thread). Approx 16mm bore. 10mm deep. 13/16" AF.
    Price From £7.09 / each (£8.51 inc. VAT) Details & Ordering

  • 631 - Lamp mounting stud & nut - 7/16" x 26 tpi thread, spot and sidelamps

    Lamp mounting stud & nut - 7/16
    Lamp mounting bolt - hollow. Thread 7/16" x 26 tpi (fine thread) as original. Measures approx 36mm long x 11mm thread diameter. Supplied with hexagon nut. Used on various Lucas spot and sidelamps.
    Price From £17.29 / each (£20.75 inc. VAT) Details & Ordering

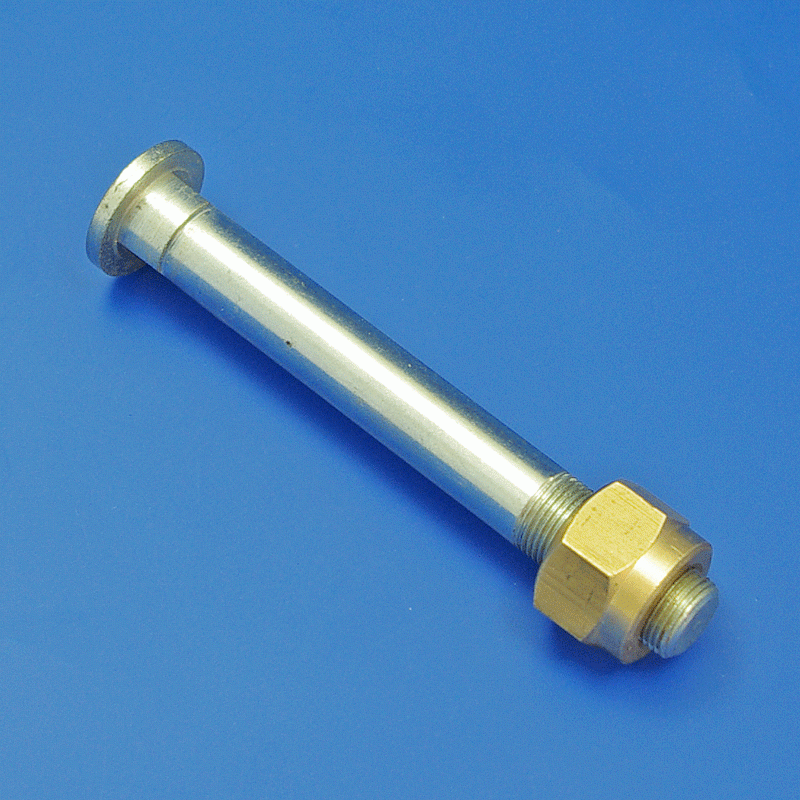

  • 629F - Headlamp stud & nut - 1/2" x 26 tpi thread, for P100 type lamps

    Headlamp stud & nut - 1/2
    Headlamp mounting bolt and nut for Lucas P100 type lamps. Thread 1/2" x 26 tpi (fine thread) as original item. Measures approx 105mm long x 13mm thread diameter (thread runs for 28mm), head diameter 22mm with a 12.5mm square cut under the head. Supplied with brass nut.
    Price From £29.54 / Each (£35.45 inc. VAT) Details & Ordering

  • 629D - Headlamp stud - 5/8" x 26 tpi thread, CAV type

    Headlamp stud - 5/8
    Headlamp mounting bolt - hollow, used on many CAV type lamps. Thread 5/8" x 26 tpi (fine thread) as original item. Measures approx 50mm long x 16mm thread diameter.
    Price From £18.76 / each (£22.51 inc. VAT) Details & Ordering

  • 629C - Headlamp stud - 5/8" x 26 tpi thread, Butler type

    Headlamp stud - 5/8
    Headlamp mounting bolt - hollow, used on Butler type lamps. Thread 5/8" x 26 tpi ( ine thread). Measures approx 68mm long x 16mm thread diameter.
    Price From £18.16 / each (£21.79 inc. VAT) Details & Ordering

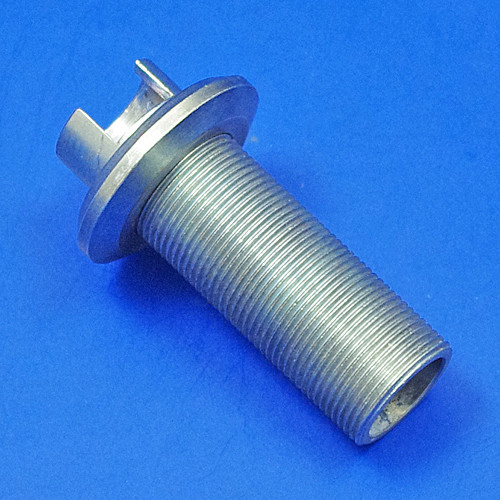

  • 629B - Headlamp stud - 5/8" x 26 tpi thread, early Lucas type

    Headlamp stud - 5/8
    Headlamp mounting bolt - hollow, with loose collar. Thread 5/8" x 26 tpi (fine thread) as original item. Measures approx 50mm long x 16mm thread diameter.
    Price From £18.72 / each (£22.46 inc. VAT) Details & Ordering

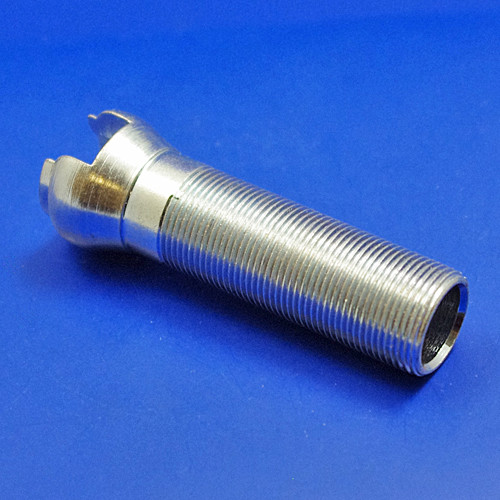

  • 629A - Headlamp stud - 5/8" x 26 tpi thread, late Lucas type

    Headlamp stud - 5/8
    Headlamp mounting bolt - hollow. Thread 5/8" x 26 tpi (fine thread) as the original item. measures approx 56mm long x 16mm thread diameter.
    Price From £16.62 / each (£19.94 inc. VAT) Details & Ordering

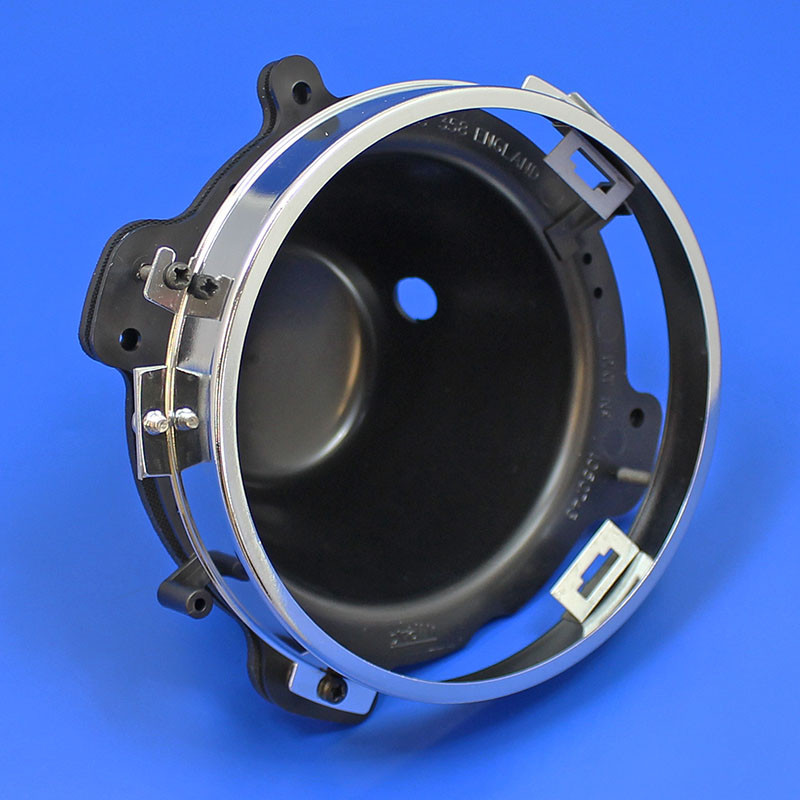

  • S5538 - 5 3/4" Headlamp bowl - Plastic nest with chrome retainers

    5 3/4
    Plastic nest for 5 3/4" light units - includes nest to body gasket. Suitable for light unit part numbers LA1014, LA1015, LA1016 and LA1017 and many other 5 3/4" light units.
    Price From £31.00 / each (£37.2 inc. VAT) Details & Ordering

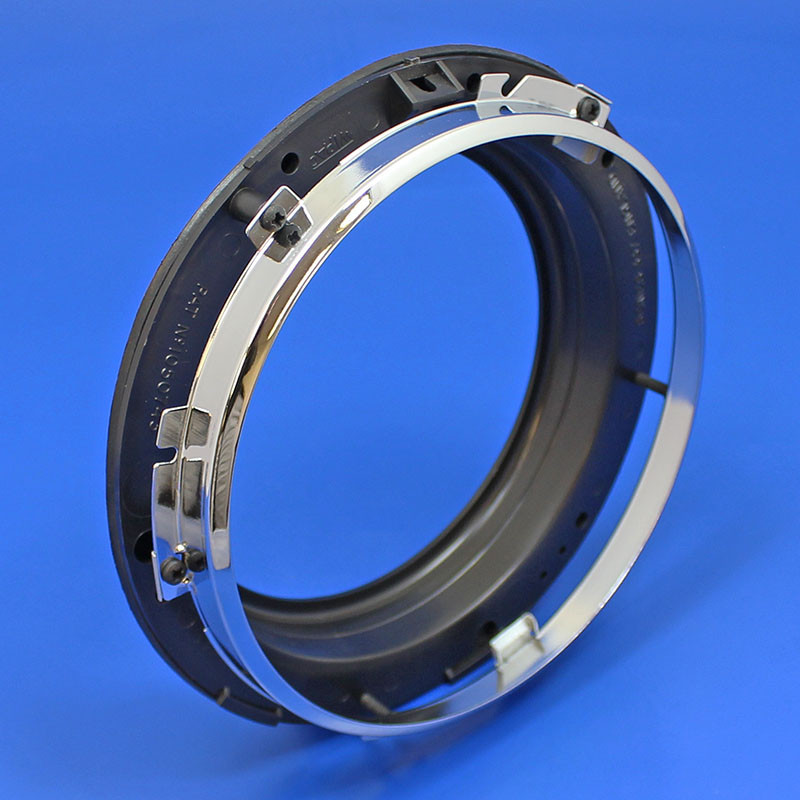

  • S5669 - 7" Headlamp bowl - Open back, plastic

    7
    Open backed 7" plastic nest (open backed version of part number S5400) used for pop up headlights or where rear space is limited. Includes nest to body gasket.
    Price From £23.56 / Each (£28.27 inc. VAT) Details & Ordering

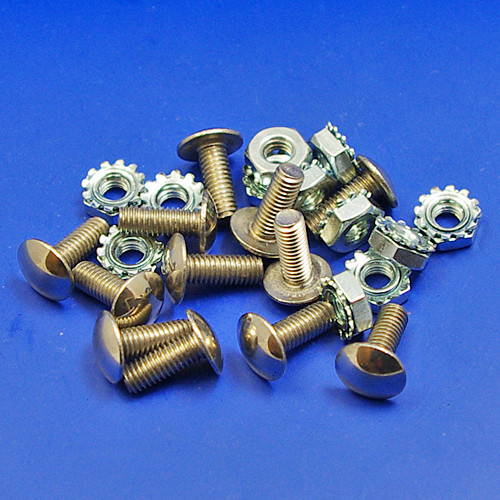

  • A-13040-S - Dome head bolt kit

    Dome head bolt kit
    Shallow dome head lamp base repair kit. Approx. 11mm diameter across head of bolt, stem approx. 4.5mm thread x 12mm long. Polished stainless steel, supplied with hex nuts. Per packet of 12 bolt and nut/lock washer assemblies. Also suitable for fixing bonnet panels to hinge.
    Price From £18.46 / pkt of 12 (£22.15 inc. VAT) Details & Ordering

  • 357 - 7" Headlamp bowl - Plastic nest with chrome retainers

    7
    Nest with black plastic back shell for 7" light units - includes nest to body sealing ring/gasket, plated retaining rim holder and adjusters. This is a direct replacement for the Lucas type metal nest (see part numbers 357A and 357B) and suits nearly all 7" (700 series) light units.
    Price From £26.70 / each (£32.04 inc. VAT) Details & Ordering

  • 357A - 7" Headlamp bowl - 3 Adjuster type for Lucas pattern 700 series lights

    7
    Metal headlamp bowl for standard 7" Lucas 700 series type light units. Three adjuster version. Supplied with metal back shell, chrome retaining rim holder and adjusters.
    Price From £40.69 / each (£48.83 inc. VAT) Details & Ordering
