410 - Pull on dash switch - Equivalent to Lucas PS7 (031218 with knob)

Pull on / push off switch, long threaded shank (16mm long, 9mm diameter) suitable for mounting through wooden dash. Overall length 73mm, maximum diameter 18mm, requires 9.5mm panel hole. Grub screw wire connections. Black SCREW ON knob allows easier through dash fitment than CA981B (with hex shaft and cross pin). Equivalent to original Lucas part number PS7 (031218 with knob, 31201 without)

Price From £25.82 / each (£30.98 inc. VAT) Details & Ordering
945-A - Pull type starter solenoid switch - PVC terminal block, equivalent to Lucas ST19/2

Bulkhead fitting pull type starter switch (945), as Lucas model type ST19/2, applicable for 6 or 12 volt application, metal case with PVC terminal block. Terminals for heavy cables. A lower cost version of our 945 all metal switch. Ford part reference ET6-11450-B. Main body 70mm long x 33mm wide x 27mm tall, 10mm mounting stud with 3mm operating pull shaft.

Price From £18.44 / Each (£22.13 inc. VAT) Details & Ordering
945 - Pull type starter solenoid switch - All metal, equivalent to Lucas ST19/2, 76423

Bulkhead fitting pull type starter switch (945), Lucas model type ST19/2, 76423 applicable for 6 or 12 volt application, all metal body with rubber shielded terminals for heavy cables. Ford part reference ET6-11450-B. main body 70mm long x 33mm wide x 27mm tall, 10mm mounting stud with 3mm operating pull shaft.

Price From £34.14 / each (£40.97 inc. VAT) Details & Ordering

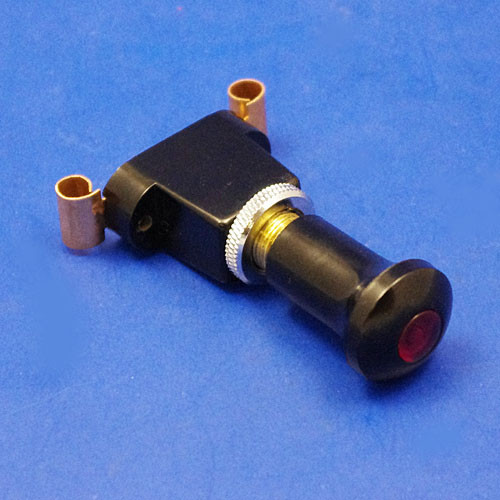

56SA - Pull on dash switch - Illuminated red lens, equivalent to Lucas 56SA

Remanufactured switch equivalent to the Lucas 56SA type. Pull on switch with red illuminated knob, fitted with 12 volt bulb. Fits through 3/8" (10mm) panel hole on metal dash. Two push in terminals to rear, body 23mm deep x 32mm x 14mm. Black plain knob unscrews to change bulb. Equivalent to original Lucas switch number 31696

Price From £26.48 / Each (£31.78 inc. VAT) Details & Ordering

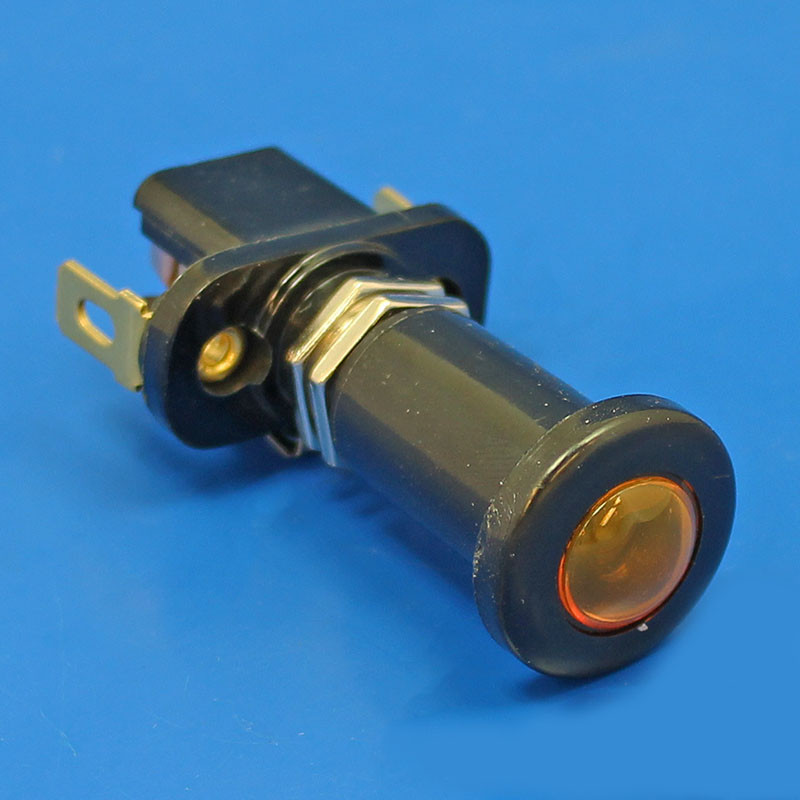

SVC597Y - Illuminated pull switch with yellow lens

Illuminated pull switch with yellow lens, traditional 50's/60's design.

Price From £17.27 / Each (£20.72 inc. VAT) Details & Ordering

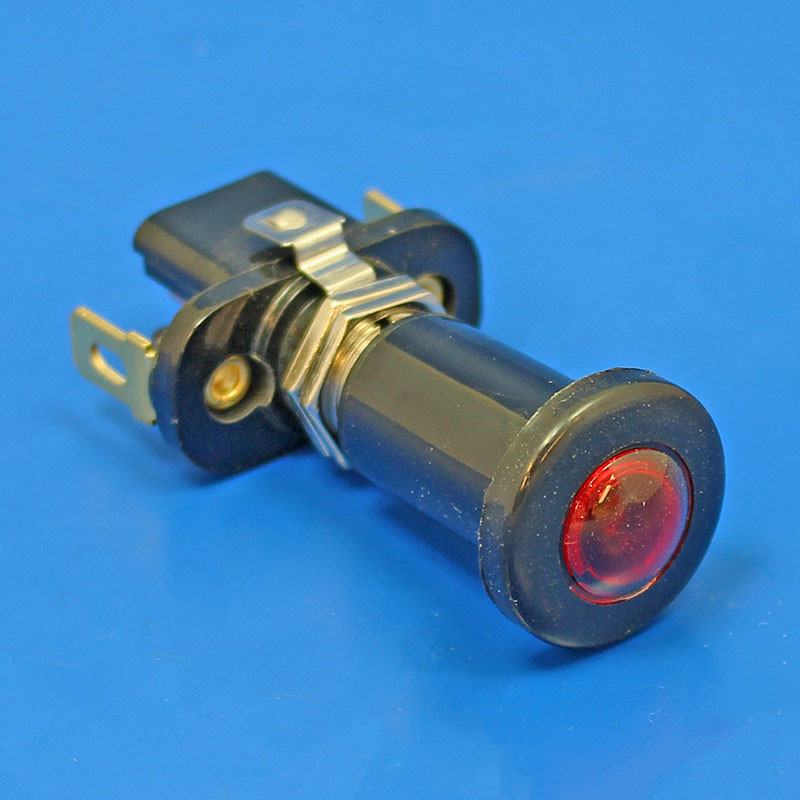

SVC597R - Illuminated pull switch with red lens

Illuminated pull switch with red lens, traditional 50's/60's design.

Price From £17.27 / Each (£20.72 inc. VAT) Details & Ordering

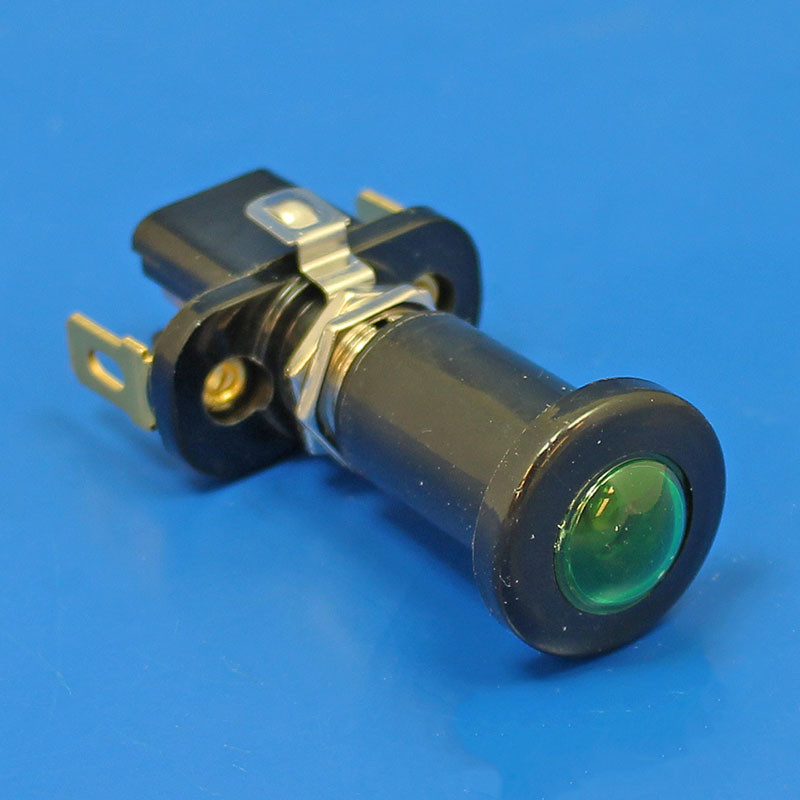

SVC597G - Illuminated pull switch with green lens

Illuminated pull switch with green lens, traditional 50's/60's design.

Price From £16.95 / Each (£20.34 inc. VAT) Details & Ordering
CA981B - Pull on dash switch - Equivalent to Lucas SPB104

Pull on / push off switch (equivalent to Lucas part number SPB104). Long shank (18mm long, 9mm diameter,) suitable for wooden dash. Black plastic knob on hexagonal stem. Knob removed by depressing spring loaded pin, two brass terminals with screws, overall dimensions 80mm x 20mm. For the same switch but with a screw on knob for ease of fitting, please see part number 410.

Price From £22.50 / each (£27 inc. VAT) Details & Ordering
101 - Two position switch - Pull/twist/pull equivalent to Lucas PPG1

Switch as Lucas PPG1 style light switch with pull/twist/pull action. Fits through 10mm hole max panel thickness 3mm with chrome retaining nut, hexagon shaft with spring loaded locating pin, three screw terminal connections application side/head light switch. Supplied without knob. Overall dimensions length 85mm width 35mm (max) 24mm (min). Shaft 27mm long, 6.4mm diameter. Three positions - 1 - Off, 2 - Pull on , 3 - Turn and pull. Applications include MGA, Triumph, Austin Healey, TR2 and TR3A

Price From £46.74 / each (£56.09 inc. VAT) Details & Ordering
CA981C - Pull on dash switch - For wooden dash

Pull/push switch, long shank suitable for wooden dash, maximum dash thickness 10mm. Fits through 8mm hole. Overall dimensions 58mm long x 30mm at widest point. Two brass terminals with screws. Black knob.

Price From £8.41 / each (£10.09 inc. VAT) Details & Ordering
