  9. piston set 100E

100E-6102 - piston set 100E

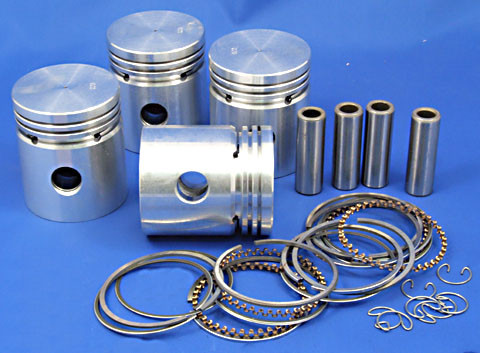

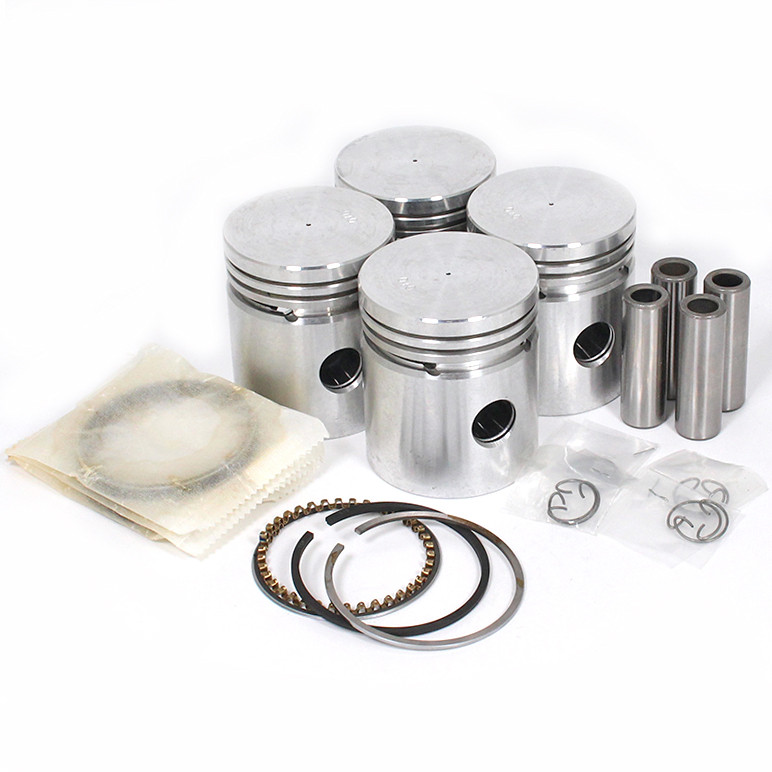

100E Piston Set - set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.050" (+50) or oversize 0.060" (+60). gudgeon pin 11/16" diameter (17.46mm). top of piston to centre of piston pin approx 45mm.

note standard bore of engine measures 2.50" (63.50mm), oversize measure 0.010" = 0.254mm, 0.020" = 0.508mm, 0.030" = 0.762mm, 0.040" = 1.016mm, 0.050" = 1.270mm, 0.060" = 1.524mm. please carry out machine work on engine parts when you have the replacement pieces actually to hand. we can not be held responsible for any variations on measurements which are for guidance purposes only.

Product Images
click to view larger image
  • piston set 100E

Diagrams including piston set 100E

Ordering
    To order: enter quantity for the product variation/s you want & click the 'Add' button at the bottom right.
  • standard

    100E-6102 - standard

    Set of four JP pistons at STD for the 100E

    Ran on engine once, used discounted to £250 + vat

    @ £250.00 / engine set
    Subtotal:
  • oversize 0.010 inch

    100E-6102-E - oversize 0.010 inch

    @ £261.36 / engine set
    Subtotal:
  • oversize 0.020 inch

    100E-6102-F - oversize 0.020 inch

    @ £261.36 / engine set
    Subtotal:
  • oversize 0.030 inch

    100E-6102-G - oversize 0.030 inch

    @ £375.30 / engine set
    Subtotal:
  • oversize 0.040 inch

    100E-6102-H - oversize 0.040 inch

    @ £261.36 / engine set
    Subtotal:
  • oversize 0.050 inch

    100E-6102-I - oversize 0.050 inch

    @ £261.36 / engine set
    Subtotal:
  • oversize 0.060 inch

    100E-6102-J - oversize 0.060 inch

    @ £261.36 / engine set
    Subtotal:
Total: £
Prices shown VAT @ 20%
