  7. Regulator & cut-out type RB106 - 12V with Lucar connections

105E-10505-B - Regulator & cut-out type RB106 - 12V with Lucar connections

12 volt 22A voltage regulator/control box with Lucar push-on terminals. Size approximately 85mm x 80mm x 95mm tall. black. 2 bobbin type. Equivalent to Lucas Part Numbers NCB101 and RB106. Applications include Ford, Austin, Hillman, Humber, MG, Morris, Reliant, Riley, Singer, Sunbeam, Wolseley. Mechanical unit with terminals A1, A, F, D and E.

used on earlier 105E models

Product Images
click to view larger image

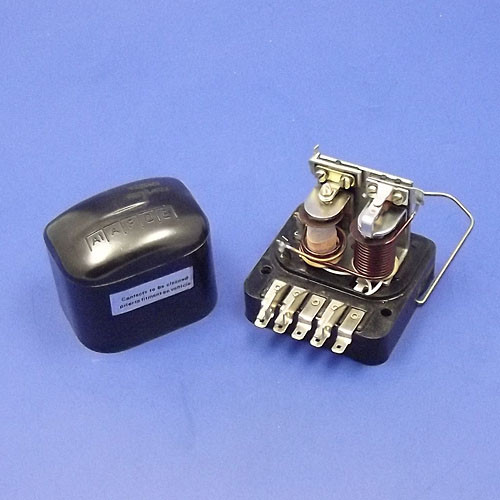

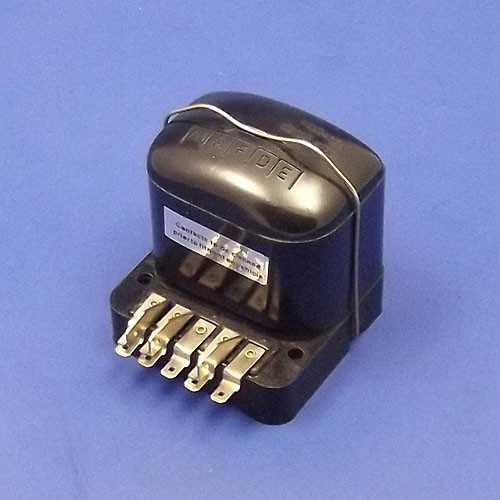

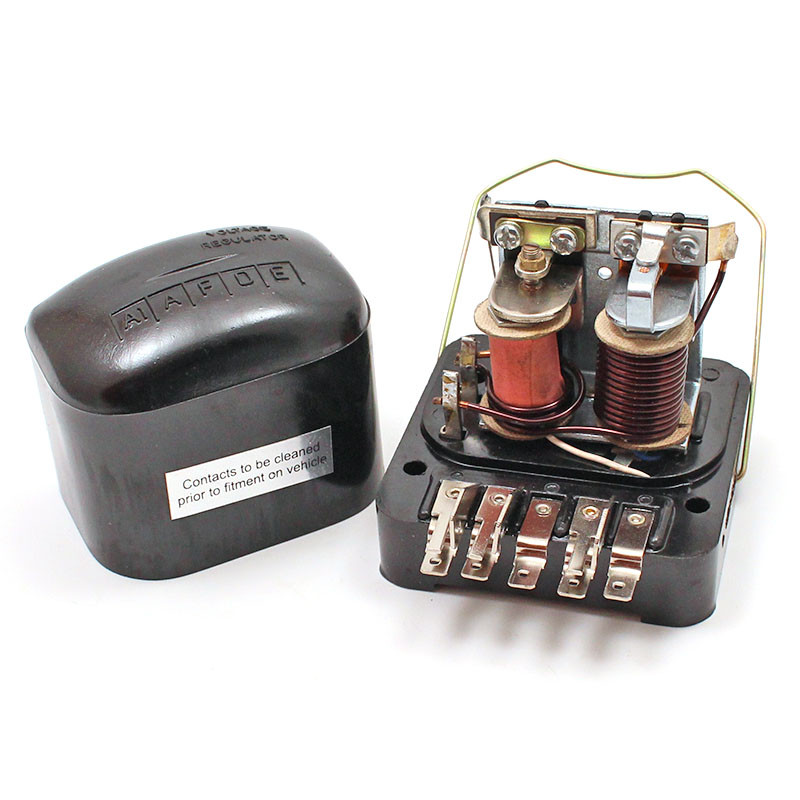

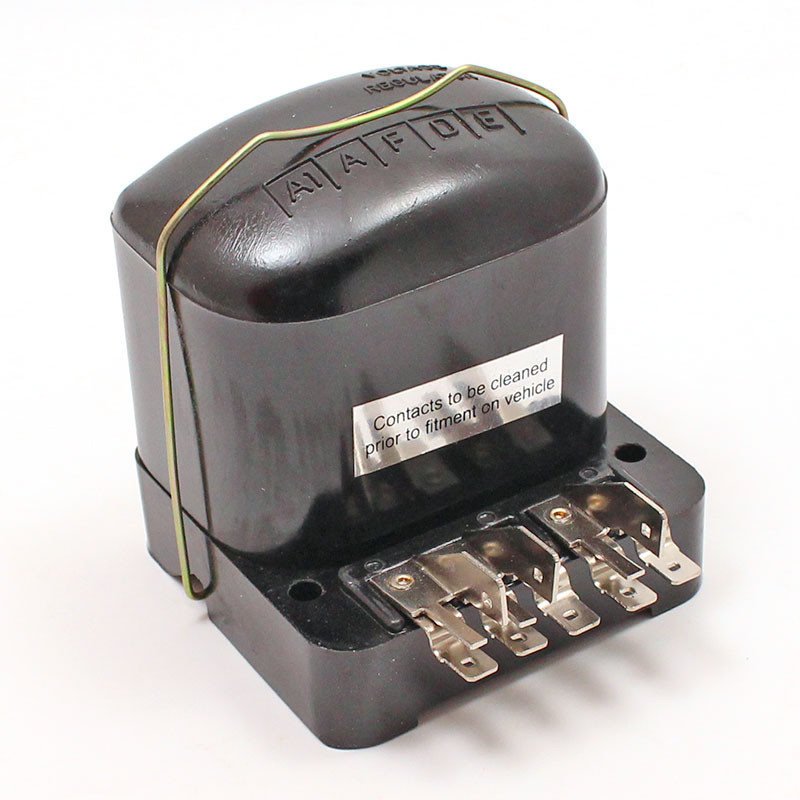

  • Regulator & cut-out type RB106 - 12V with Lucar connections
  • Regulator & cut-out type RB106 - 12V with Lucar connections
  • Regulator & cut-out type RB106 - 12V with Lucar connections

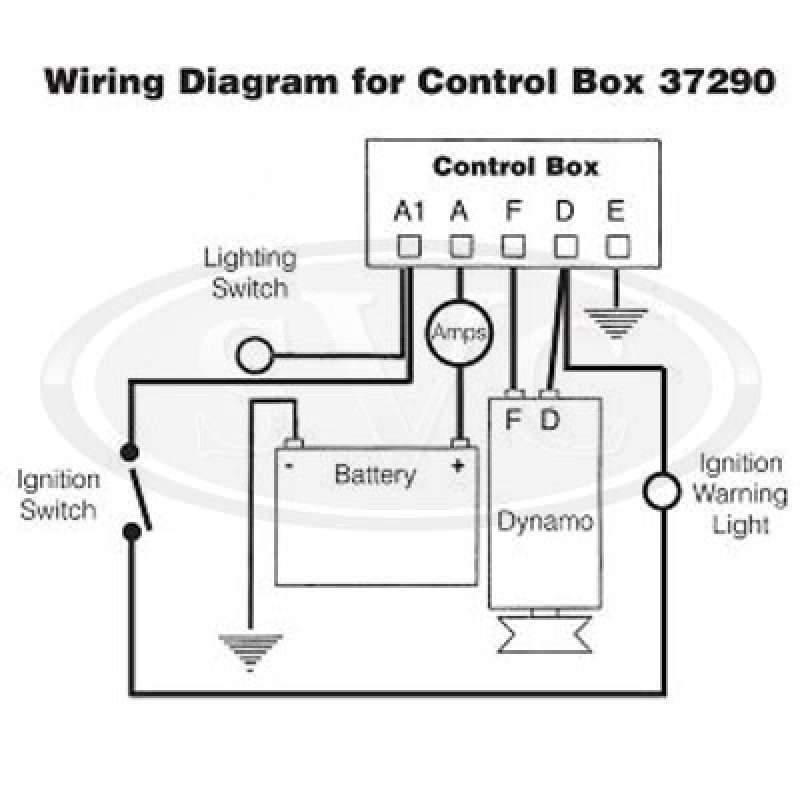

Diagrams including Regulator & cut-out type RB106 - 12V with Lucar connections

Ordering
    To order: enter quantity & click 'Add'.
  • @ £49.75 / each
    Subtotal:
Total: £
Prices shown VAT @ 20%
