  7. Dip switch, floor mounted - Equivalent to Lucas 31284

442 - Dip switch, floor mounted - Equivalent to Lucas 31284

Floor mounted traditional dip switch for foot use, equivalent to Lucas part number 31284 (model FS22-1). Base plate measures 75mm x 40mm with 60mm hole centre fixing screws, three terminals with screw/plate connections, switch operating button 32mm diameter 35mm tall, overall height of switch from base plate 47mm. Very similar to switch no. 31226.

Ford part reference YE-13528-B

Product Images
click to view larger image

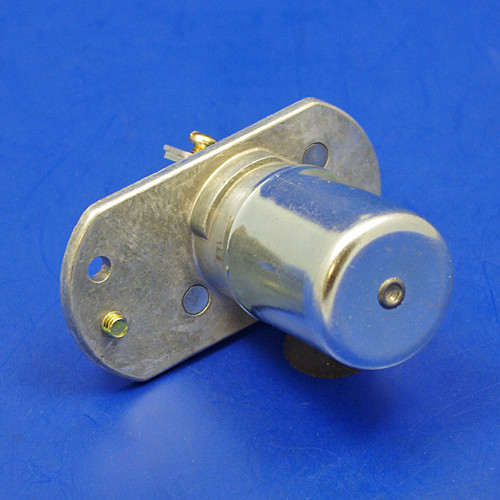

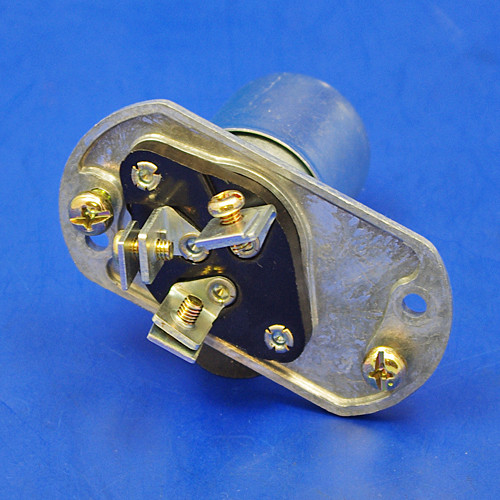

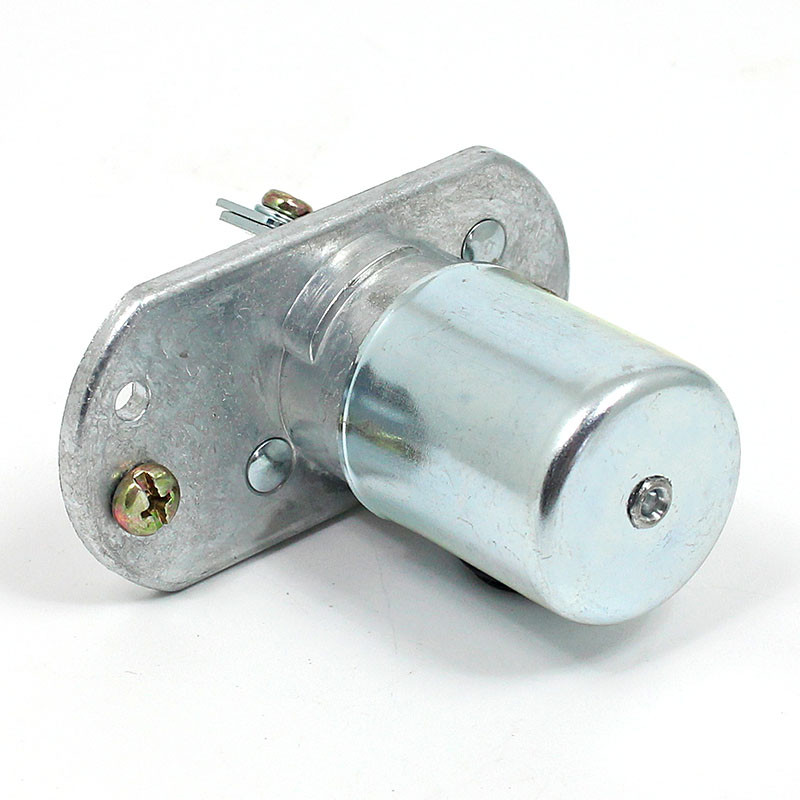

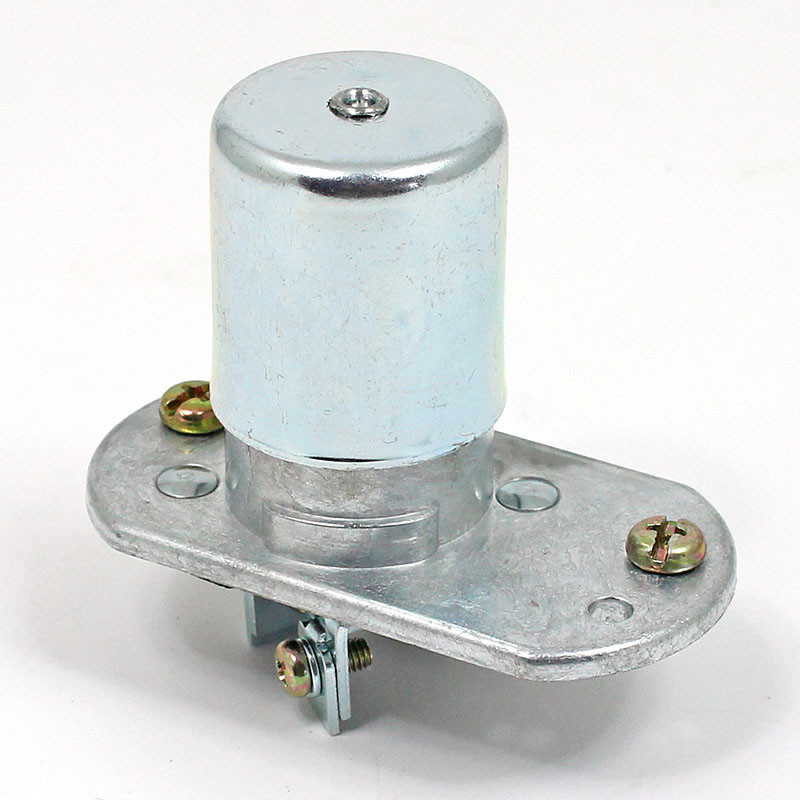

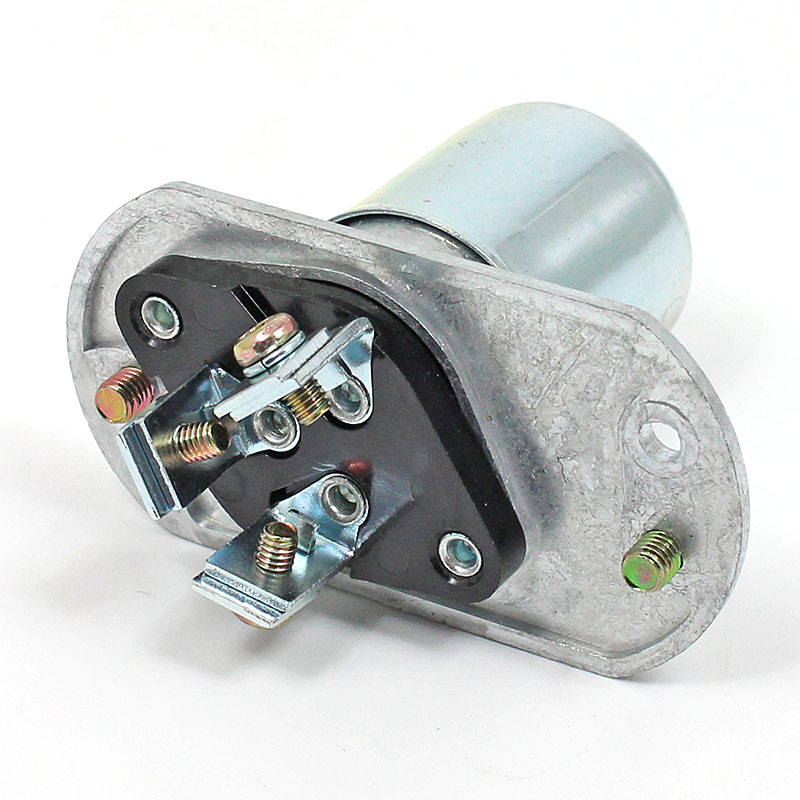

  • Dip switch, floor mounted - Equivalent to Lucas 31284
  • Dip switch, floor mounted - Equivalent to Lucas 31284
Ordering
    To order: enter quantity & click 'Add'.
  • @ £31.75 / each
    Subtotal:
Total: £
Prices shown VAT @ 20%
