  9. aquaplane aluminium flywheel with gear ring

AP-6375 - aquaplane aluminium flywheel with gear ring

Supplied with steel insert face for clutch friction plate (as shown) or without for extra lightness. specify model 8/10hp or 100E. weights:-
8/10hp without insert - 2.60kgs
8/10hp with insert - 3.23kgs
100E without insert - 3.22kgs
100E with insert - 3.92kgs

Product Images
click to view larger image

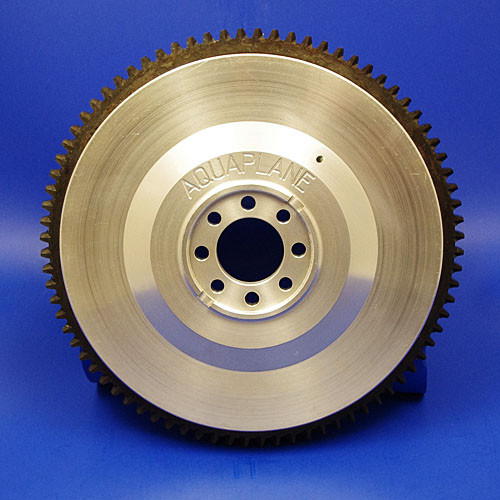

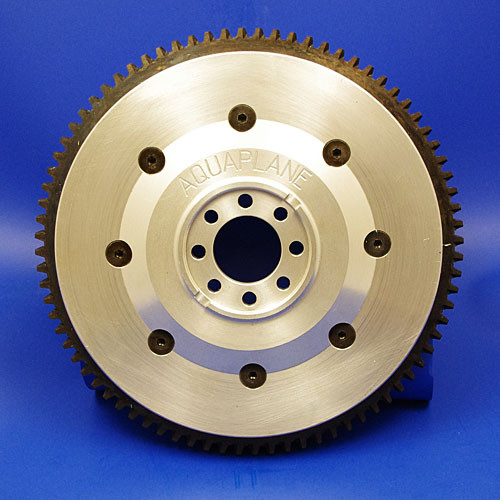

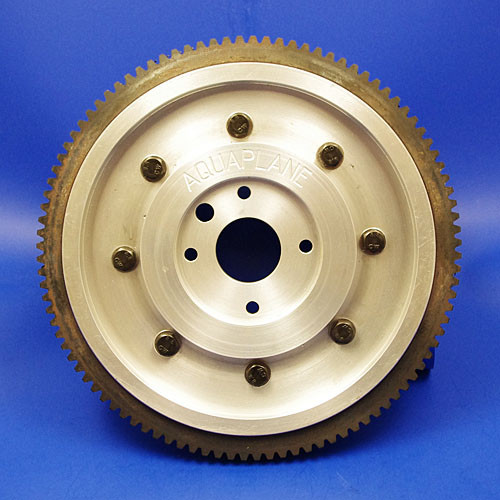

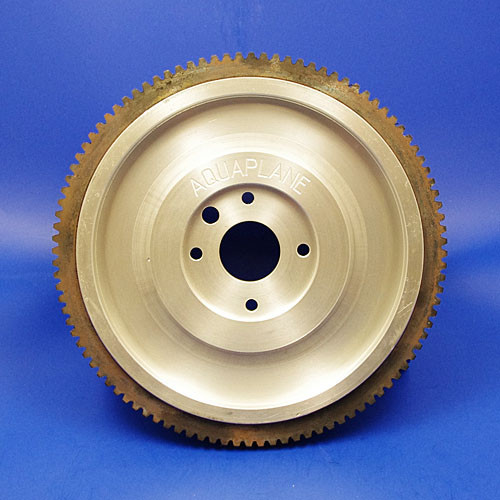

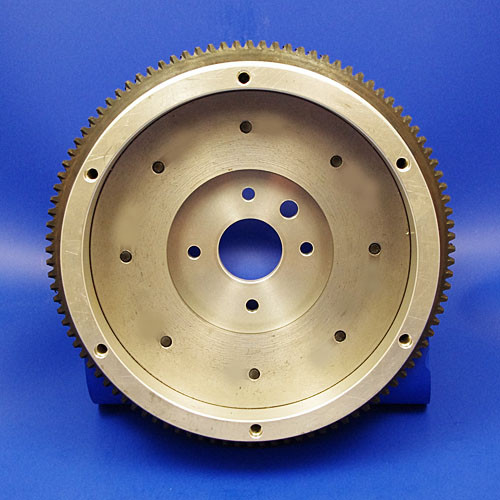

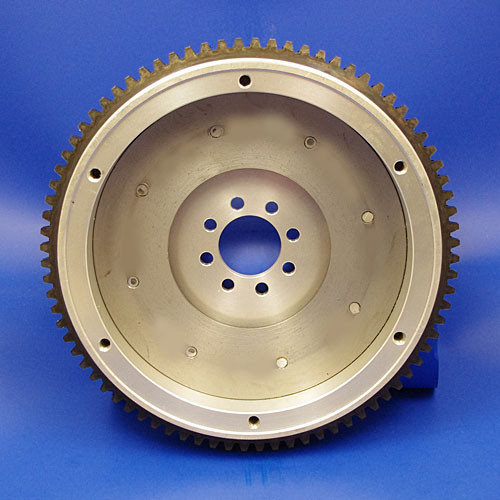

  • aquaplane aluminium flywheel with gear ring
  • aquaplane aluminium flywheel with gear ring
  • aquaplane aluminium flywheel with gear ring
  • aquaplane aluminium flywheel with gear ring
  • aquaplane aluminium flywheel with gear ring
  • aquaplane aluminium flywheel with gear ring
  • aquaplane aluminium flywheel with gear ring

Fitting instructions

Flywheel torque settings

Nut tightening torque data for flywheel set screws:
8hp and 10hp - 25 to 28 lb./ft. - 33 to 37 Nm
100E - 21 to 23 lb./ft. - 28 to 31 Nm
105E/123E - 45 to 50 lb./ft. - 60 to 67 Nm

Diagrams including aquaplane aluminium flywheel with gear ring

Ordering
    To order: enter quantity for the product variation/s you want & click the 'Add' button at the bottom right.
  • for 8 or 10hp with steel insert face - weighs - 3.23kgs

    AP-6375-Y-IN - for 8 or 10hp with steel insert face - weighs - 3.23kgs

    @ £279.98 / Each
    Subtotal:
  • for 100E with steel insert face - weighs - 3.92kgs

    AP-6375-100E-IN - for 100E with steel insert face - weighs - 3.92kgs

    @ £272.54 / Each
    Subtotal:
  • for 8 or 10hp without steel insert face - weighs - 2.60kgs

    AP-6375-Y - for 8 or 10hp without steel insert face - weighs - 2.60kgs

    @ £206.44 / Each
    Subtotal:
  • for 100E without steel insert face - weighs - 3.22kgs

    AP-6375-100E - for 100E without steel insert face - weighs - 3.22kgs

    @ £247.96 / Each
    Subtotal:
Total: £
Prices shown VAT @ 20%
