  9. Conrod big end shell bearing set

E176/E187-Z-1 - Conrod big end shell bearing set

Ford Anglia and Prefect 105E, 106E, 107E, 108E and 307E replacement bearing shell set for piston to crank connecting shaft (see fitments below). Specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less 0.050" to a maximum of less 0.060". note standard crankshaft big end crankshaft bearing journal size measures 1.9370" (49.20mm), undersize measure by 0.010" = 0.254mm, 0.020" = 0.508mm, 0.030" = 0.762mm, 0.040" = 1.016", 0.050" = 1.270mm, 0.060" = 1.524mm. please carry out machine work on engine parts when you have the replacement pieces actually to hand. we can not be held responsible for any variations on measurements which are for guidance purposes only.

Product Images
click to view larger image

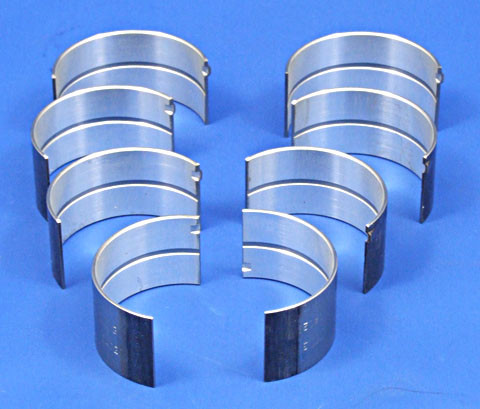

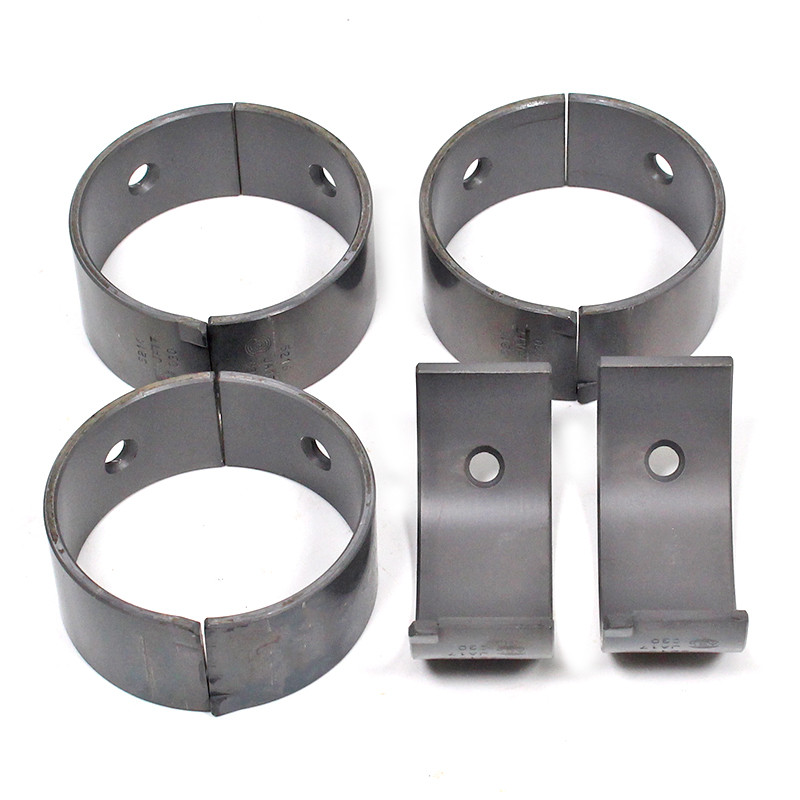

  • Conrod big end shell bearing set
Ordering
    To order: enter quantity for the product variation/s you want & click the 'Add' button at the bottom right.
  • standard

    E176-Z-1 - standard

    standard size

    @ £65.92 / engine set
    Subtotal:
  • under 10

    E180-Z-1 - under 10

    undersize 10 thou

    @ £65.92 / engine set
    Subtotal:
  • under 20

    E182-Z-1 - under 20

    undersize 20 thou

    @ £65.92 / engine set
    Subtotal:
  • under 30

    E184-Z-1 - under 30

    undersize 30 thou

    @ £65.92 / engine set
    Subtotal:
  • under 40

    E186-Z-1 - under 40

    undersize 40 thou

    @ £65.92 / engine set
    Subtotal:
  • under 60

    E186-Z-60 - under 60

    undersize 60 thou

    @ £65.92 / engine set
    Subtotal:
Total: £
Prices shown VAT @ 20%
