  9. 10hp piston set (tall)

E493A-6102 - 10hp piston set (tall)

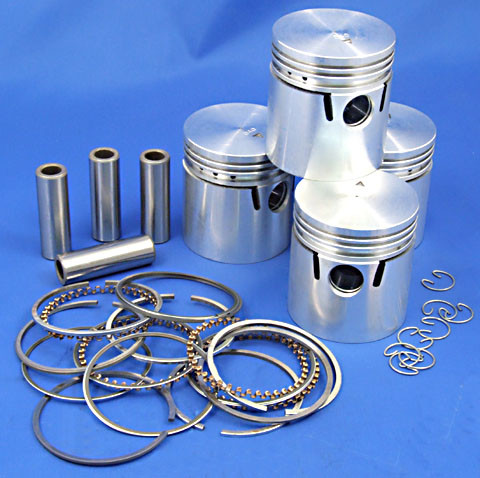

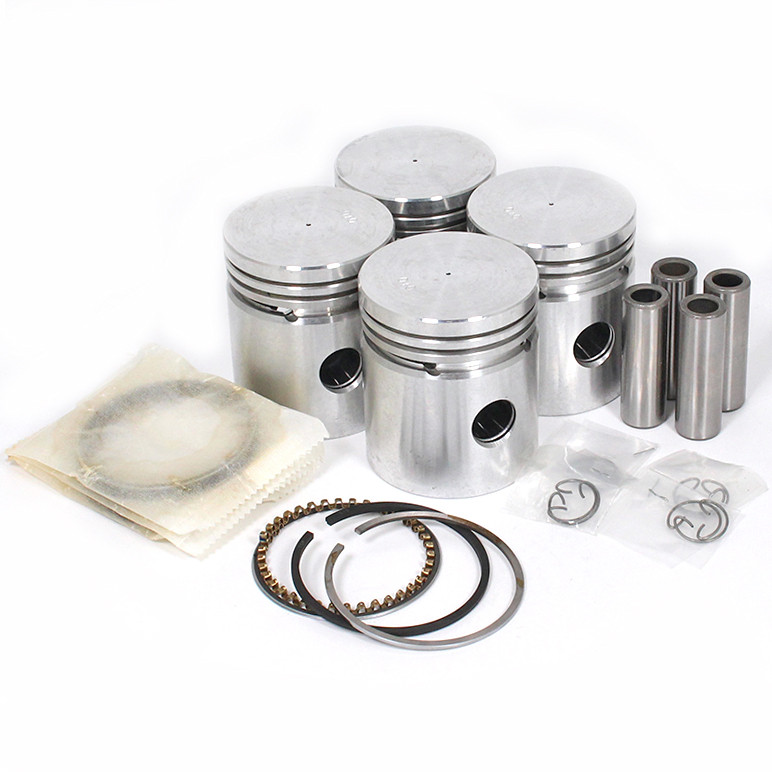

E93A engine, 10hp Piston Set (Tall) - set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.050" (+50) or oversize 0.060" (+60). compression height from centre of pin to top approximately 32mm, gudgeon pin 11/16" diameter (17.46mm). used in E93A engine.

note standard bore of engine measures 2.50" (63.50mm), oversize measure 0.010" = 0.254mm, 0.020" = 0.508mm, 0.030" = 0.762mm, 0.040" = 1.016mm, 0.050" = 1.270mm, 0.060" = 1.524mm. please carry out machine work on engine parts when you have the replacement pieces actually to hand. we can not be held responsible for any variations on measurements which are for guidance purposes only.

Product Images
click to view larger image
  • 10hp piston set (tall)

Diagrams including 10hp piston set (tall)

Ordering
    To order: enter quantity for the product variation/s you want & click the 'Add' button at the bottom right.
  • standard size

    E493A-6102-A - standard size

    @ £232.69 / set of 4 pieces
    Subtotal:
  • oversize 0.010 inch

    E493A-6102-B - oversize 0.010 inch

    @ £247.25 / set of 4 pieces
    Subtotal:
  • oversize 0.030 inch

    E493A-6102-D - oversize 0.030 inch

    @ £239.95 / set of 4 pieces
    Subtotal:
  • oversize 0.040 inch

    E493A-6102-E - oversize 0.040 inch

    @ £239.95 / set of 4 pieces
    Subtotal:
  • oversize 0.050 inch

    E493A-6102-F - oversize 0.050 inch

    @ £231.28 / set of 4 pieces
    Subtotal:
Total: £
Prices shown VAT @ 20%
