  9. Headlamp rim catch - 2BA thread, used with 13016-A and 641

13016-B - Headlamp rim catch - 2BA thread, used with 13016-A and 641

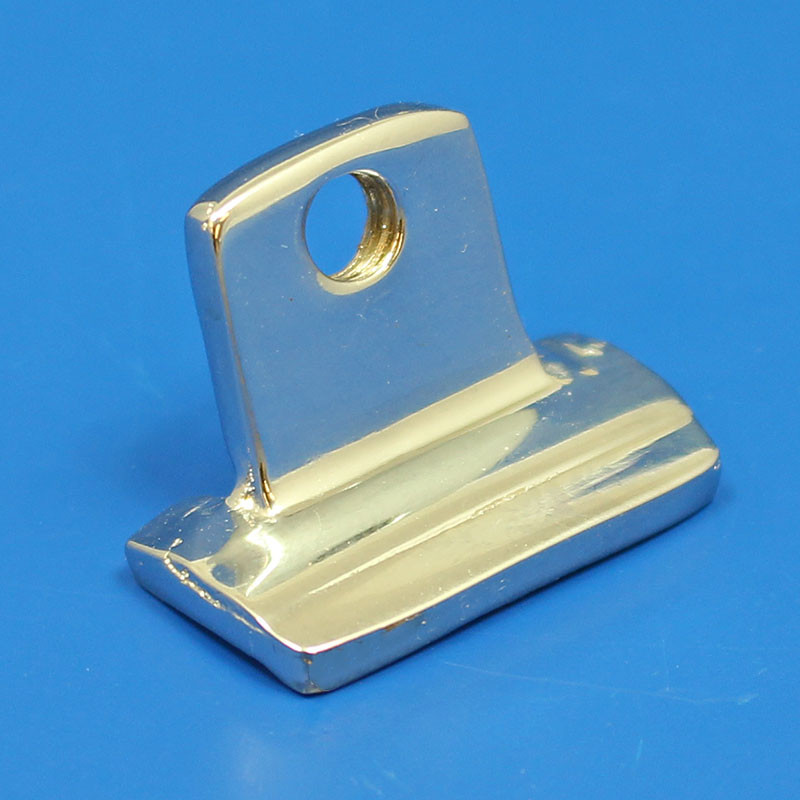

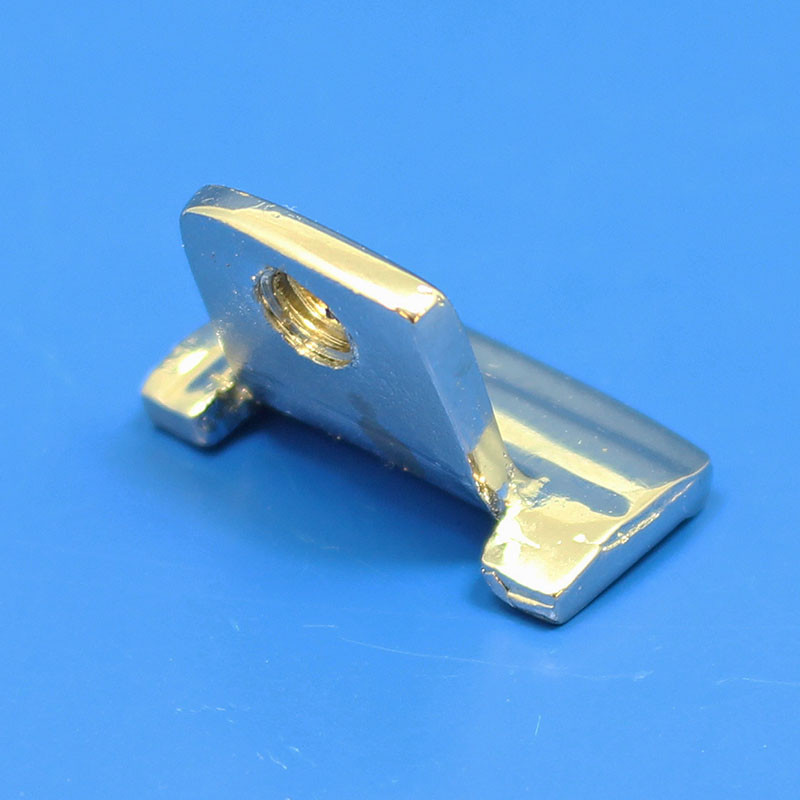

Chome plated bronze bracket for Lucas type headlamps such as the L140. Fits inside the headlamp shell rim - the tongue fits through the slot which then accepts the rim fixing screw 641 in a 2BA threaded hole, with the base of screw 641 pulling on to catch 13016-A, located in the lamp rim. Dimensions 24mm x 13mm, threaded screw tongue 15mm wide x 13.5mm tall.

Product Images
click to view larger image
  • Headlamp rim catch - 2BA thread, used with 13016-A and 641
  • Headlamp rim catch - 2BA thread, used with 13016-A and 641
Ordering
    To order: enter quantity & click 'Add'.
  • @ £14.46 / Each
    Subtotal:
Total: £
Prices shown VAT @ 20%
