  7. Hand brake cable assy

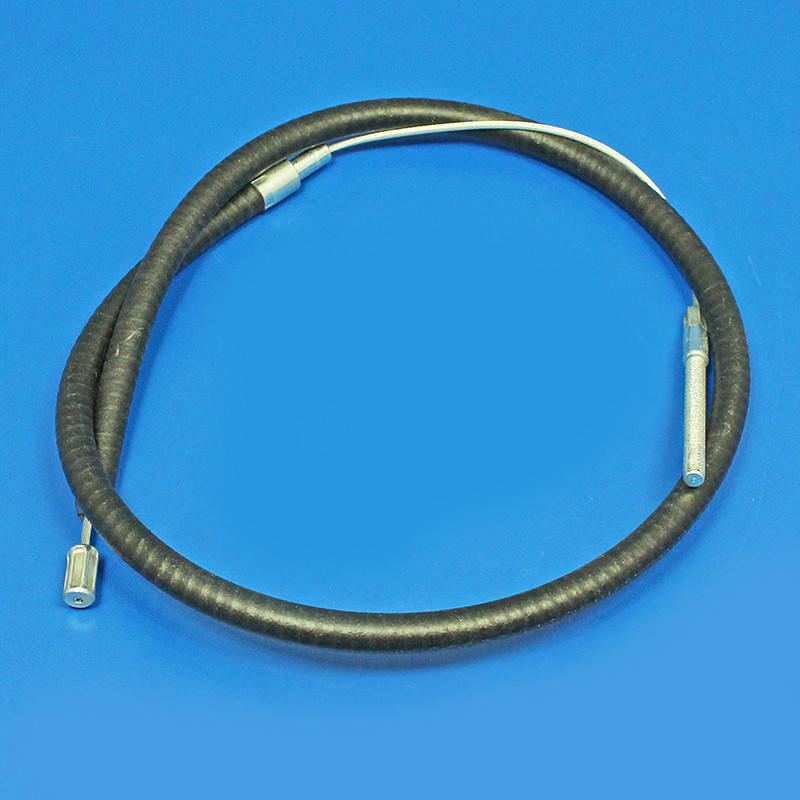

7W-2853-C - Hand brake cable assy

Inner and outer handbrake cable assembly for all upright models 1938 - 1959.

Please note that standard thread where the cable attaches to the linkage is 1/4"UNF thread, however some vehicles have had larger 5/16"UNF thread clevis yolks fitted. Please check you vehicle before ordering.

Dimensions :- Overall length 109cms, outer conduit 81cms (including stepped ferrule), inner cable diameter 3mm, outer conduit diameter 10mm, threaded section 58mm long,

Product Images
click to view larger image
  • Hand brake cable assy

Diagrams including Hand brake cable assy

Ordering
    To order: enter quantity for the product variation/s you want & click the 'Add' button at the bottom right.
  • standard 1/4 UNF thread end

    7W-2853-C - standard 1/4 UNF thread end

    @ £34.65 / Each
    Subtotal:
  • 5/16 UNF thread end

    7W-2853-5/16 - 5/16 UNF thread end

    @ £49.87 / Each
    Subtotal:
Total: £
Prices shown VAT @ 20%
