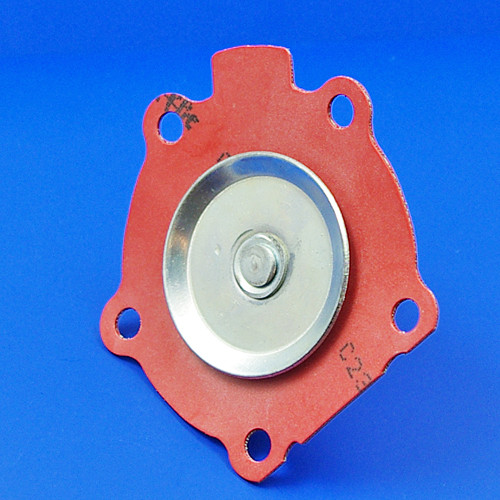

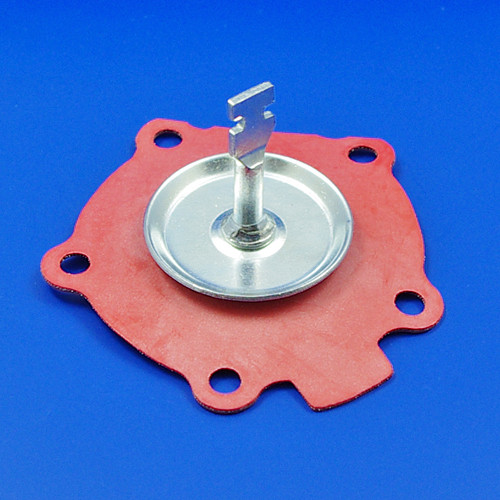

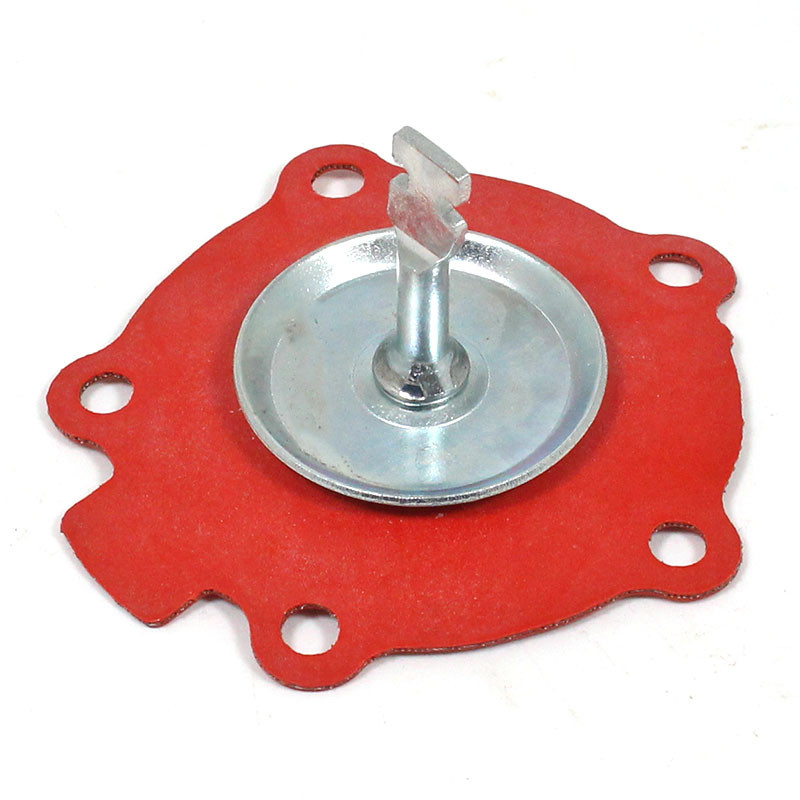

E04A-9398-B - Fuel pump diaphragm
Diaphragm only - suits the 'small' fuel pump - AC type Y and YD etc. (part of fuel pump repair kits AC BD3 and BD4) NOT the larger export pump. Notch on stem approximately 24mm above washer.
Diagrams including Fuel pump diaphragm
Applies to Vehicles
Ford - Model 19, Y (1932 to 1937)
Ford - Model 20, C & CX (1934 to 1937)
Ford - Eight, Model 7Y (1937 to 1939)
Ford - Ten, Model 7W (1937 to 1939)
Ford - Anglia, Model E04A (1939 to 1948)
Ford - Prefect, Model E93A (1939 to 1948)
Ford - Anglia, Model E494A (1949 to 1953)
Ford - Popular, Model 103E/104E (1953 to 1959)
Ford - 5 cwt. Van, Model E04C (1940 to 1948)
Ford - 5 cwt. Van, Model E494C (1949 to 1954)
Ford - 10 cwt. Van, Model E83W (1938 to 1957)
Ford - Estate Car, Model E83W (1949 to 1957)
Ford - Pick-up, Model E83W (1950 to 1957)
Ford - 300E 5cwt & 7cwt Van (1954 to 1961)
Ford - 100E Anglia & Popular (1953 to 1962)
Ford - 100E Prefect (1953 to 1962)
Ford - 100E Escort & Squire (1955 to 1961)
